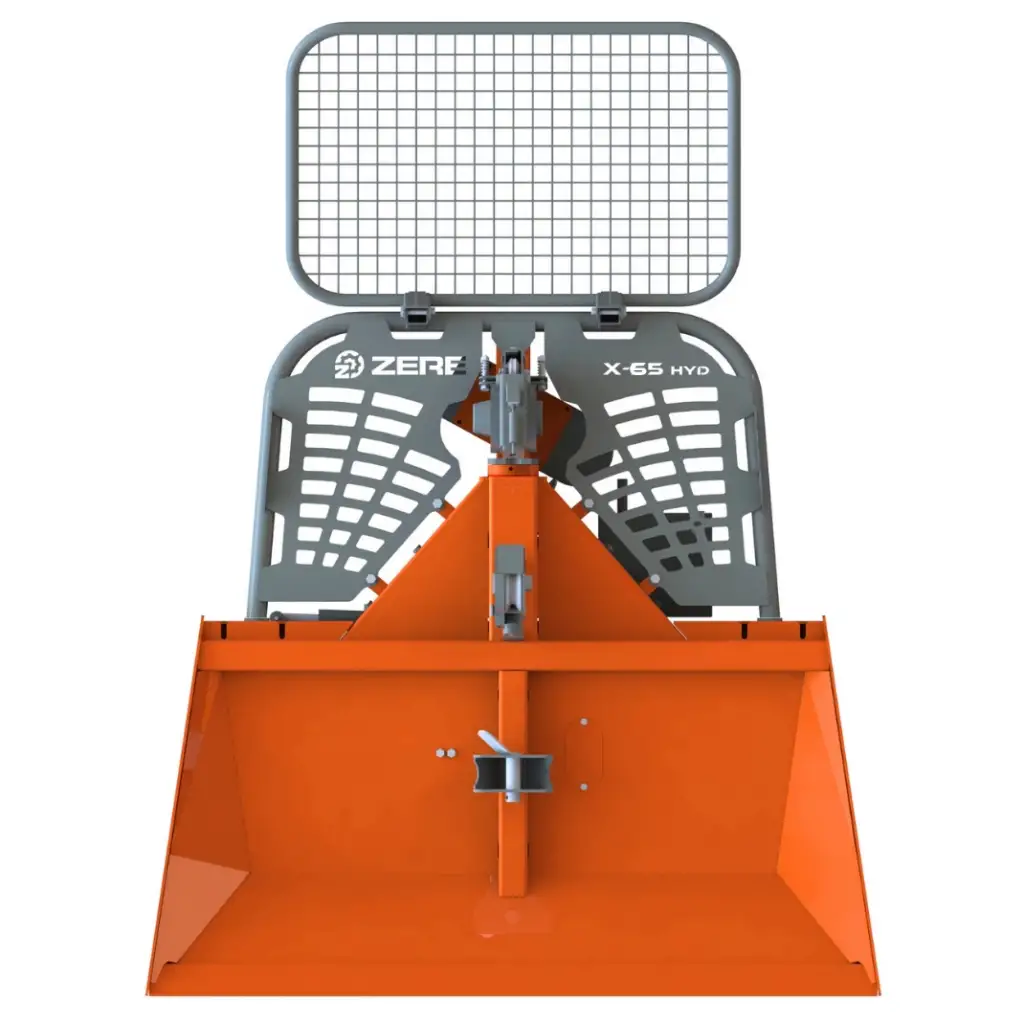

X-65 HYD

HYDRAULIC — FORESTRY WINCH

HYD Series — Electro-Hydraulic ControlCE CERTIFIED
Pulling Capacity
6.5 ton
Max. Rope Length
120 m / Ø 11 mm
Weight (without rope)
450 kg
Average Winch Speed
0.6 m/s
Recommended Tractor Power
55–65 kW (75–90 HP)

Since 1980: Engineering powered by the field.
ZERE stands for trust and long-life performance in forestry.

Compact Power

The ZERE HYD series with electro-hydraulic control combines high pulling capacity with a compact body. Thanks to its optimized hydraulic block, it delivers higher pulling efficiency with lower energy.

Operator-Friendly

Radio remote control and an ergonomic control layout give the operator precise maneuverability. With the rope unwinding system, automatic stop, and controlled braking, it ensures safe and comfortable use.

Durable Design

High-alloy steel construction and a Hardox bottom blade maximize durability in harsh conditions. Every detail engineered by ZERE is built for long service life and uninterrupted performance.

Key Features

RADIO REMOTE CONTROL

Gives the operator full control from a safe distance. Pulling, stopping, and rope unwinding are managed with one button for precise, comfortable operation.

ELECTRO-HYDRAULIC CONTROL SYSTEM

The ZERE-developed electro-hydraulic block maximizes field performance with fast response and high durability.

ROPE UNWINDING SYSTEM

Keeps the wire rope under tension while unwinding to prevent tangling. The automatic stop ensures safe spooling on the drum.

AUTOMATIC STOP (LIMIT SWITCH)

Stops the system when the rope nears its end on the drum to prevent overload and rope breakage.

ANTI-TIP SYSTEM (OPTIONAL)

Maintains tractor stability on slopes. Smart sensors minimize winch tip-over risk.

PINNED LOWER SHEAVE

Lockable safety keeps rope alignment and protects the pulling line, extending rope life and safety.

CHAINSAW HOLDER

A safe, easy-to-reach transport solution for the operator’s key tool. Impact-resistant steel structure for long life.

FOLDABLE WINDOW GUARD

Compact in transport, maximum safety in use. ZERE’s hinge design is both durable and easy to fold.

CHAIN HANGERS & STORAGE

Dual-side hangers and integrated boxes keep chains organized and accessible, boosting efficiency.

DETACHABLE TRAILER HITCH

Bolted design enables quick attach/remove. A flexible, practical, and robust solution for trailer handling.

MULTI-HEIGHT HITCH POINTS

Two pin diameters and height positions fit various tractors. Easy installation and broad compatibility.

HARDOX BOTTOM BLADE

High-strength Hardox steel provides maximum abrasion protection, ensuring long life and secure anchoring.

Technical Specifications

Pulling Capacity
6.5 ton
Brake Capacity
8.1 ton
Average Winch Speed
0.6 m/s
Standard Rope Length
80 m / Ø 12 mm
Max. Rope Length
120 m / Ø 11 mm — 100 m / Ø 12 mm
Recommended Tractor Power
55–65 kW / 75–90 HP
Control
Electro-Hydraulic
Number of Clutch Plates
4
Width
1640 mm
* 1840 mm
Depth
650 mm
Height (without guard)
1750 mm
Height (with guard)
2300 mm
Weight (without rope)
450 kg
* 490 kg
Hitch Category
II, III
Radio Remote Control
Standard
Rope Unwinding System
Standard
Continuous Rope Unwinding Valve
Standard
Anti-Tip System
Optional
Automatic Stop (Limit Switch)
Standard
Lower Sheave
Standard
Trailer Hitch
Standard
Chainsaw Holder
Standard

* Values with an asterisk indicate add-on/option variants. HYD series: Electro-hydraulic control system. Values may vary depending on field conditions.
