X-55 HYD

HYDRAULIC — FORESTRY WINCH

HYD Series — Electro-hydraulic ControlCE CERTIFIED
Pulling Capacity
5.5 ton
Max. Rope Length
110 m / Ø 10 mm
Weight (without rope)
410 kg
Average Winch Speed
0.6 m/s
Recommended Tractor Power
45–55 kW (60–75 HP)

Since 1980: Engineering powered by the field.
ZERE stands for trust and long-life performance in forestry.

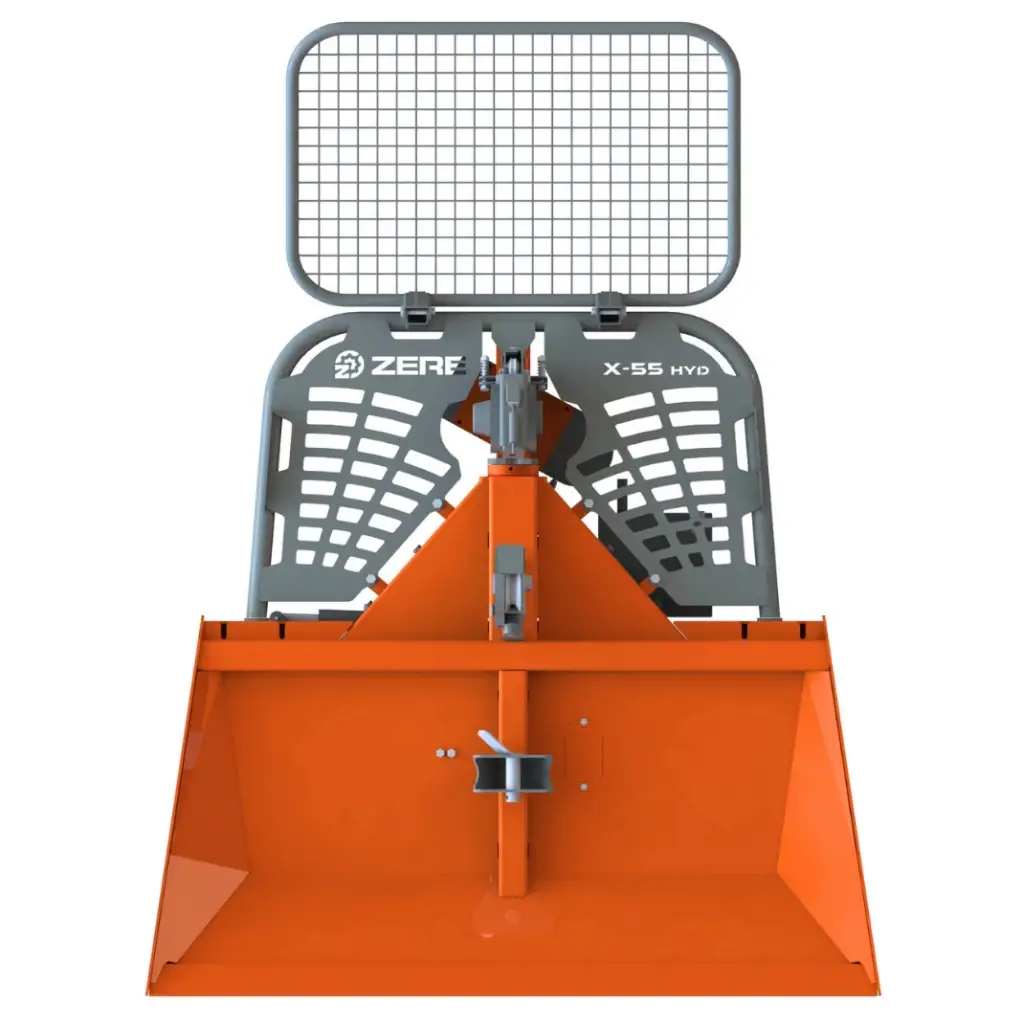

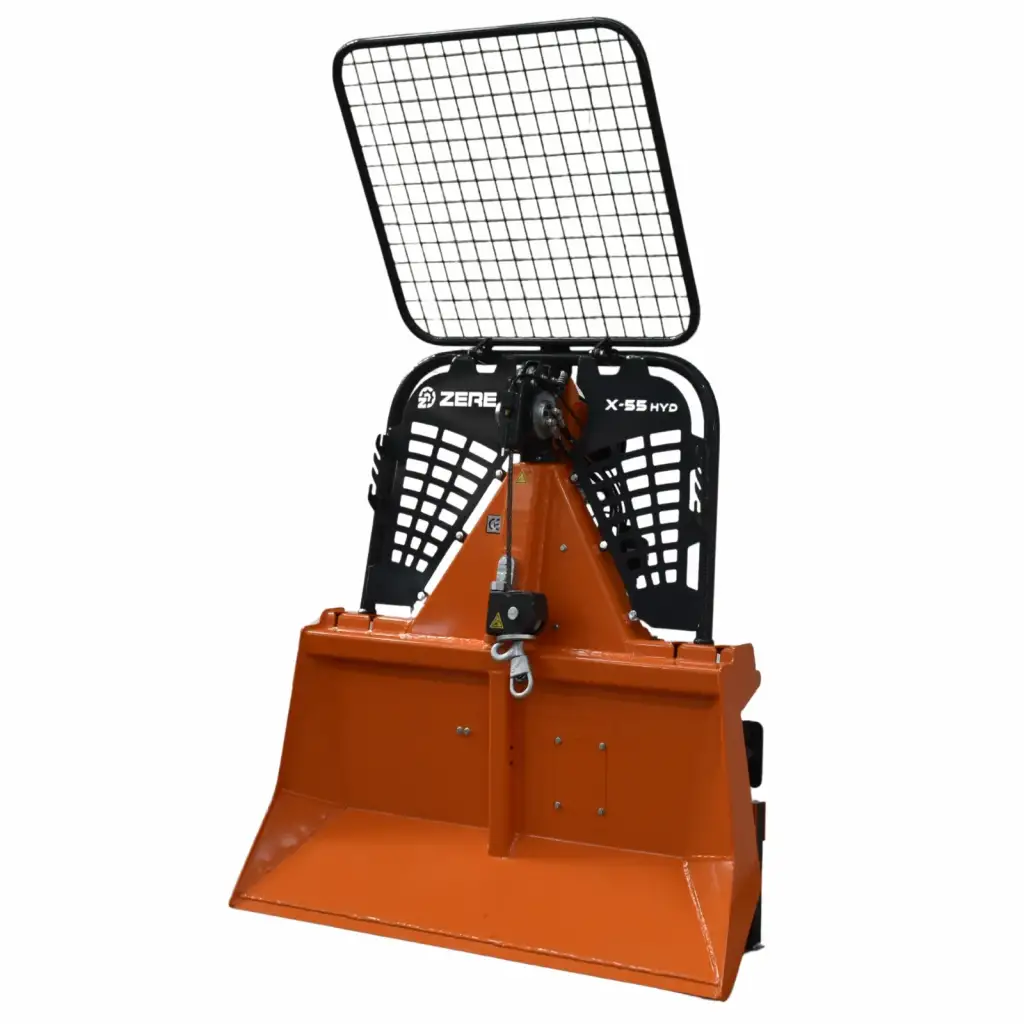

ZERE X-55 HYD

Compact Power

The ZERE HYD series, controlled by an electro-hydraulic system, combines high pulling capacity with a compact body. Thanks to its optimized hydraulic block, it delivers higher pulling efficiency with lower energy.

Operator-Friendly

Radio remote control and an ergonomic control layout give the operator precise maneuverability. With a rope pay-out system, automatic stop, and controlled braking, it ensures safe, comfortable operation.

Durable Design

High-alloy steel construction and a Hardox bottom blade provide maximum durability in tough conditions. Every ZERE-engineered detail is built for long service life and uninterrupted performance.

Key Features

Radio Remote Control

RADIO REMOTE CONTROL

Full control from a safe distance. Pulling, stop, and rope pay-out are managed with a single button—precise and comfortable.

Electro-hydraulic Control System

ELECTRO-HYDRAULIC CONTROL SYSTEM

The ZERE-developed control block offers fast response and high durability to maximize field performance.

Rope Pay-Out System

ROPE PAY-OUT SYSTEM

Keeps constant tension while paying out, preventing tangles. The automatic stop ensures safe spooling on the drum.

Automatic Stop (Limit Switch)

AUTOMATIC STOP (LIMIT SWITCH)

Stops the system as rope end approaches, preventing overload and rope breakage.

Anti-Tip System (Optional)

ANTI-TIP SYSTEM (OPTIONAL)

Maintains tractor stability on slopes. Smart sensors minimize winch tipping risk.

Pinned Lower Sheave

PINNED LOWER SHEAVE

Lockable safety keeps rope alignment and protects the pulling line—longer rope life and higher safety.

Chainsaw Holder

CHAINSAW HOLDER

Safe, accessible storage for the operator’s key tool. Impact-resistant steel for long life.

Foldable Window Guard

FOLDABLE WINDOW GUARD

Compact in transport, maximum safety in use. Durable, easy-fold hinge design.

Chain Hangers & Storage

CHAIN HANGERS & STORAGE

Dual hangers and integrated boxes keep chains organized and within reach.

Detachable Trailer Hitch

DETACHABLE TRAILER HITCH

Bolted design allows quick attach/remove—flexible, practical, and robust.

Multi-Height Hitch Points

MULTI-HEIGHT HITCH POINTS

Two pin diameters and positions fit different tractors for easy, wide compatibility.

Hardox Bottom Blade

HARDOX BOTTOM BLADE

High-strength Hardox steel minimizes abrasion for long life and secure anchoring.

Technical Specifications

Pulling Capacity
5.5 ton
Brake Capacity
6.9 ton
Average Winch Speed
0.6 m/s
Standard Rope Length
70 m / Ø 11 mm
Max. Rope Length
110 m / Ø 10 mm — 90 m / Ø 11 mm
Recommended Tractor Power
45–55 kW / 60–75 HP
Control
Electro-hydraulic
Number of Clutch Plates
3
Width
1520 mm
Depth
530 mm
Height (without guard)
1510 mm
Height (with guard)
2300 mm
Weight (without rope)
410 kg
Hitch Category
I, II
Radio Remote Control
Standard
Rope Pay-Out System
Standard
Continuous Rope Pay-Out Valve
Standard
Anti-Tip System
Optional
Automatic Stop (Limit Switch)
Standard
Lower Sheave
Standard
Trailer Hitch
Standard
Chainsaw Holder
Standard

* HYD series: Electro-hydraulic control system. Values may vary depending on field conditions.
