X-45 MEC

MECHANICAL — FORESTRY WINCH

MEC Series — Mechanical ControlCE CERTIFIED
Pulling Capacity
4.5 ton
Max. Rope Length
110 m / Ø 10 mm
Weight (without rope)
330 kg
Average Winch Speed
0.9 m/s
Recommended Tractor Power
35–45 kW (48–60 HP)

Since 1980: Engineering powered by the field.
ZERE stands for trust and long-life performance in forestry.

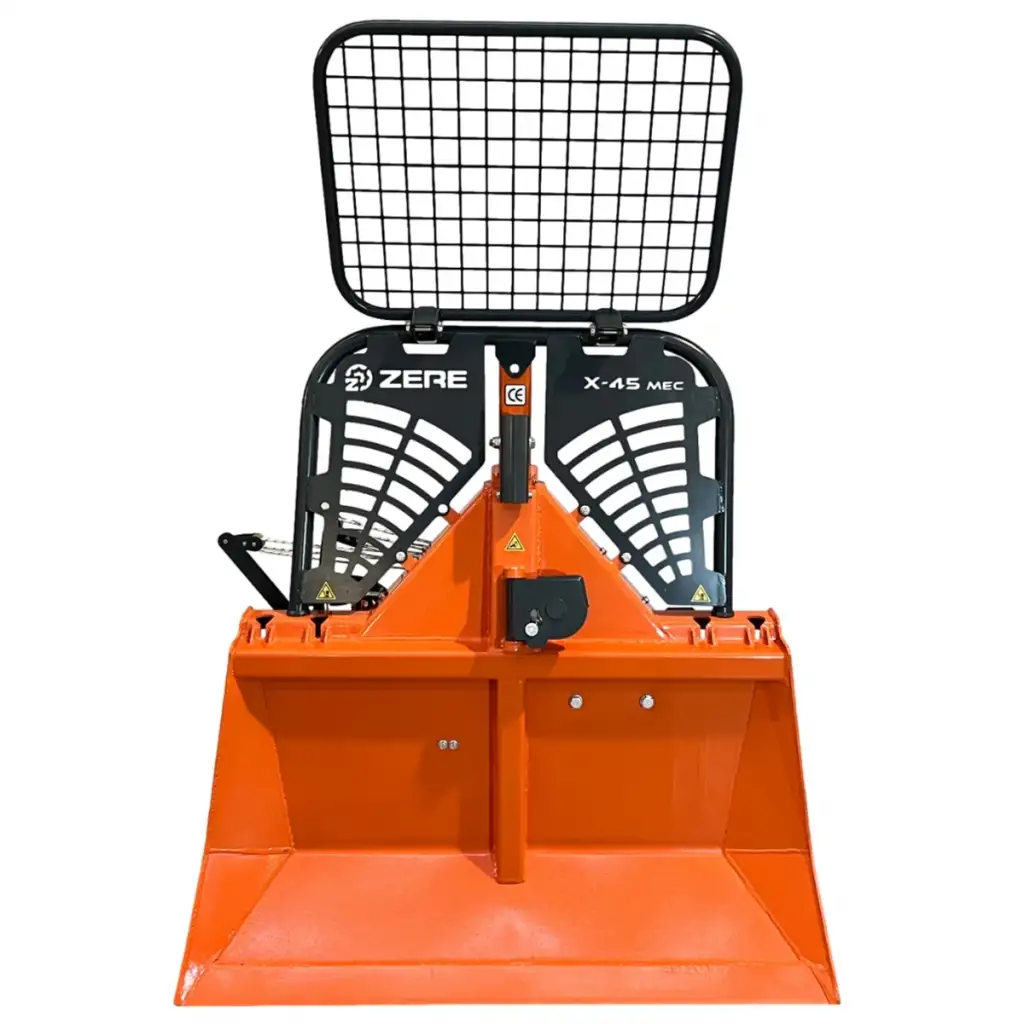

ZERE X-45 MEC

Compact Power

ZERE X-45 MEC with a 4.5-ton pulling capacity achieves the same force with lower tractor horsepower thanks to its integrated reduction system. That cuts fuel use and boosts efficiency, while the compact body eases maneuvering in tight sites.

Operator-Friendly

The foldable guard cage enables easy transport and safe operation. Front large storage areas keep chainsaws and chains accessible. The ergonomic control layout enhances comfort in long shifts.

Durable Design

A high-alloy steel body reflects ZERE’s toughness standards. The wear-resistant bottom blade delivers long service life. X-45 MEC is a reliable, durable partner for professional forestry work.

Key Features

Chainsaw Holder

CHAINSAW HOLDER

Safe, easy-reach transport for the operator’s key tool. Impact-resistant steel construction for long-lasting use.

Chain Hangers & Storage

CHAIN HANGERS & STORAGE

Dual-side hangers and integrated boxes keep chains organized and within reach, boosting efficiency.

Foldable Window Guard

FOLDABLE WINDOW GUARD

Compact in transport, maximum safety in use. ZERE’s special hinge is both durable and easy to fold.

Hand Cord

HAND CORD

Ergonomic control to disengage the brake or apply full pulling force. Simplifies power control and supports safe work.

Pinned Lower Sheave

PINNED LOWER SHEAVE

Lockable safety keeps the rope on track and prevents jumping. Extends rope life and stabilizes pulling.

Detachable Trailer Hitch

DETACHABLE TRAILER HITCH

Bolted design for quick attach/remove and flexible use. A practical answer to trailer handling needs.

Multi-Height Hitch Points

MULTI-HEIGHT HITCH POINTS

Two pin diameters and height settings fit a wide range of tractors. Universal mounting for flexible setup.

Hardox Bottom Blade

HARDOX BOTTOM BLADE

Wear- and impact-resistant Hardox steel minimizes abrasion during anchoring for long life and durability.

Technical Specifications

Pulling Capacity
4.5 ton
Brake Capacity
5.6 ton
Average Winch Speed
0.9 m/s
Standard Rope Length
70 m / Ø 10 mm
Max. Rope Length
110 m / Ø 10 mm — 90 m / Ø 11 mm
Recommended Tractor Power
35–45 kW / 48–60 HP
Control
Mechanical
Number of Clutch Plates
1
Width
1420 mm
Depth
530 mm
Height (without guard)
1410 mm
Height (with guard)
2250 mm
Weight (without rope)
330 kg
Hitch Category
I, II
Radio Remote Control
-
Anti-Tip System
-
Rope Unwinding System
-
Automatic Stop (Limit Switch)
-
Continuous Rope Unwinding Valve
-
Lower Sheave
Standard
Trailer Hitch
Standard
Chainsaw Holder
Standard

* MEC series: Mechanical control system. Values may vary depending on field conditions.
