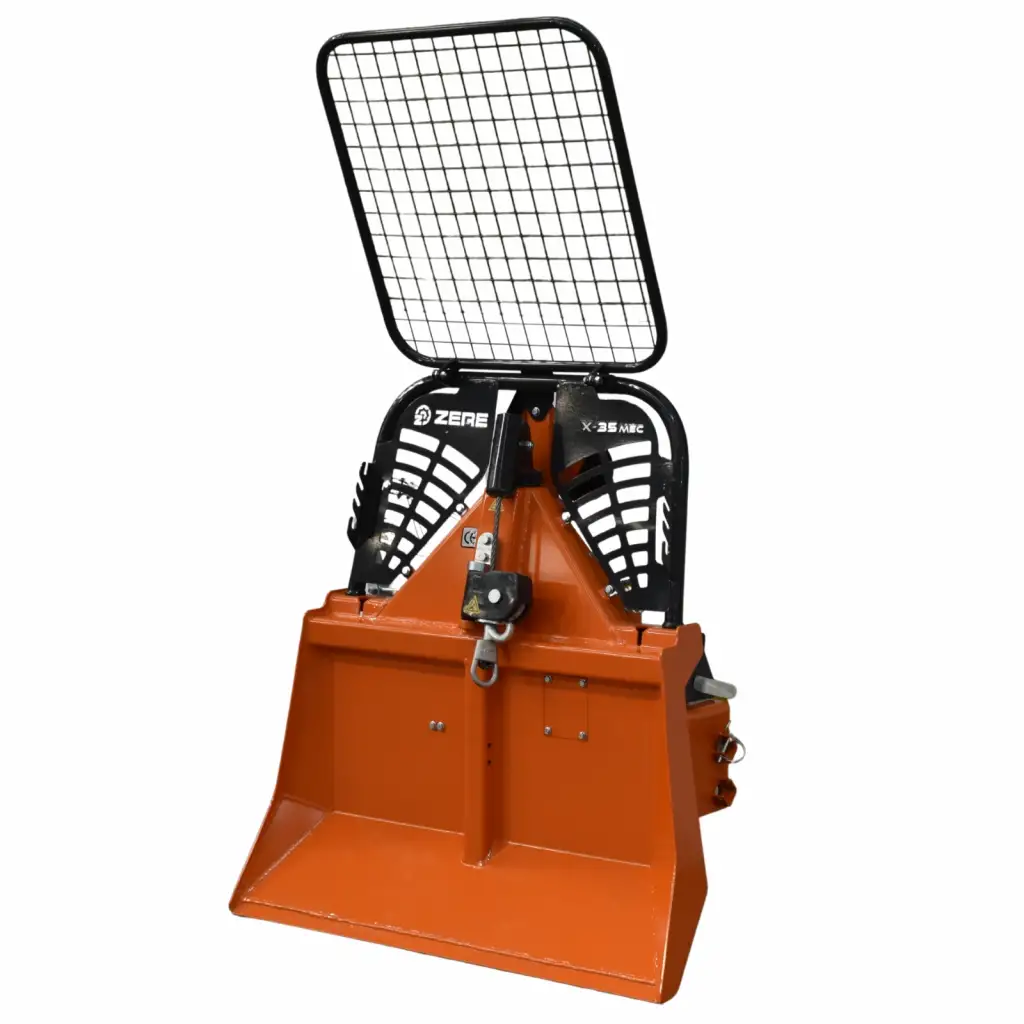

X-35 MEC

MECHANICAL — FORESTRY WINCH

MEC Series — Mechanical ControlCE CERTIFIED
Pulling Capacity
3.5 ton
Max. Rope Length
90 m / Ø 9 mm
Weight (without rope)
300 kg
Average Winch Speed
0.9 m/s
Recommended Tractor Power
25–35 kW (34–48 HP)

Since 1980: Engineering powered by the field.
ZERE stands for trust and long-life performance in forestry.

Compact Power

ZERE X-35 MEC with a 3.5-ton pulling capacity achieves the same force with lower tractor horsepower thanks to its integrated reduction system. This reduces fuel consumption and increases efficiency. Its compact body allows easy maneuvering even in tight spaces.

Operator-Friendly

The foldable guard cage offers easy transport and safe operation. The front large storage areas provide quick access to equipment like chainsaws and chains. The ergonomic control layout enhances comfort during long shifts.

Durable Design

The high-alloy steel body reflects ZERE’s toughness standards. A wear-resistant bottom blade ensures long service life. X-35 MEC is a reliable, durable partner for professional forestry work.

Key Features

Chainsaw Holder

CHAINSAW HOLDER

A safe, easy-to-reach transport solution for the operator’s key tool. Impact-resistant steel construction for long-lasting use.

Chain Hangers & Storage

CHAIN HANGERS & STORAGE

Dual-side hanger system and integrated boxes keep chains organized and within reach, boosting operational efficiency.

Foldable Window Guard

FOLDABLE WINDOW GUARD

Compact for transport, maximum safety in use. ZERE’s special hinge design is both durable and easy to fold.

Hand Cord

HAND CORD

Ergonomic control to disengage the brake or apply full pulling force. Simplifies power control and supports safe operation.

Pinned Lower Sheave

PINNED LOWER SHEAVE

Lockable safety keeps the rope on track and prevents it from jumping out. Extends rope life and improves pulling stability.

Detachable Trailer Hitch

DETACHABLE TRAILER HITCH

Bolted design enables quick attach/remove and flexible use. A practical solution for trailer handling needs.

Multi-Height Hitch Points

MULTI-HEIGHT HITCH POINTS

Two pin diameters and height settings fit a wide range of tractors. Universal mounting for flexible installation.

Hardox Bottom Blade

HARDOX BOTTOM BLADE

Wear- and impact-resistant Hardox steel minimizes abrasion during anchoring. Delivers long life and high durability.

Technical Specifications

Pulling Capacity
3.5 ton
Brake Capacity
4.4 ton
Average Winch Speed
0.9 m/s
Standard Rope Length
70 m / Ø 9 mm
Max. Rope Length
90 m / Ø 9 mm — 75 m / Ø 10 mm
Recommended Tractor Power
25–35 kW / 34–48 HP
Control
Mechanical
Number of Clutch Plates
1
Width
1220 mm
Depth
490 mm
Height (without guard)
1300 mm
Height (with guard)
2100 mm
Weight (without rope)
300 kg
Hitch Category
I, II
Radio Remote Control
-
Anti-Tip System
-
Rope Unwinding System
-
Automatic Stop (Limit Switch)
-
Continuous Rope Unwinding Valve
-
Lower Sheave
Standard
Trailer Hitch
Standard
Chainsaw Holder
Standard

* MEC series: Mechanical control system. Values may vary depending on field conditions.
